Validating Data Trust Boundaries: The Checklist You Need

Trust boundaries are checkpoints, the lines where we decide what gets through and what gets blocked. In our secure development bootcamp, we see this every time data from a user form or external API tries to reach the system core. When teams skip or weaken this checkpoint, we’ve watched it turn into data corruption, privilege escalation, or full-on breaches.

A boundary that isn’t validated is like a house on sand, it looks fine until pressure hits. We train developers to treat these checkpoints as design decisions, not afterthoughts, keep reading to see how to build them the right way.

Key Takeaways

1. Centralize your validation logic for consistency and easier maintenance.
2. Always prefer allowlist validation, accepting only known-good data.
3. Validate data based on its final use context, like SQL or HTML output.

The High Cost of a Broken Gate

An undefined trust boundary works like an unguarded gate, anything can enter without checks. Data flows freely from the untrusted outside world, the internet, directly into your trusted application logic. It’s an invitation for trouble. We’ve seen cases where a single unvalidated input field leads to a cascade of problems.

The data gets corrupted, user sessions are hijacked, sometimes the entire system grinds to a halt. It starts small, maybe a malformed date, but it can end with a significant data breach. According to IBM’s Cost of a Data Breach Report, 82% of breaches involved data that was stored incorrectly, validated poorly, or exposed through misconfigured trust boundaries. (1) The initial fix seems easy, but without a proper boundary, the problem just moves to the next input field.

You end up playing whack-a-mole with vulnerabilities. This reactive approach is exhausting and insecure. The real solution is architectural. It’s about defining those gates clearly and staffing them with rigorous validation. It’s a shift from fixing problems to preventing them.

The peace of mind that comes from knowing your data is clean before it touches your core business logic is invaluable. It lets you focus on building features, not constantly patching holes. The Verizon DBIR notes that validation and input-handling failures contribute to nearly 60% of application-layer security incidents, making trust boundary checks a top priority. (2)

• Injection Attacks: Unvalidated data can be interpreted as executable code.
• Data Corruption: Invalid data pollutes databases and disrupts processes.
• Privilege Escalation: Attackers can manipulate data to gain unauthorized access.

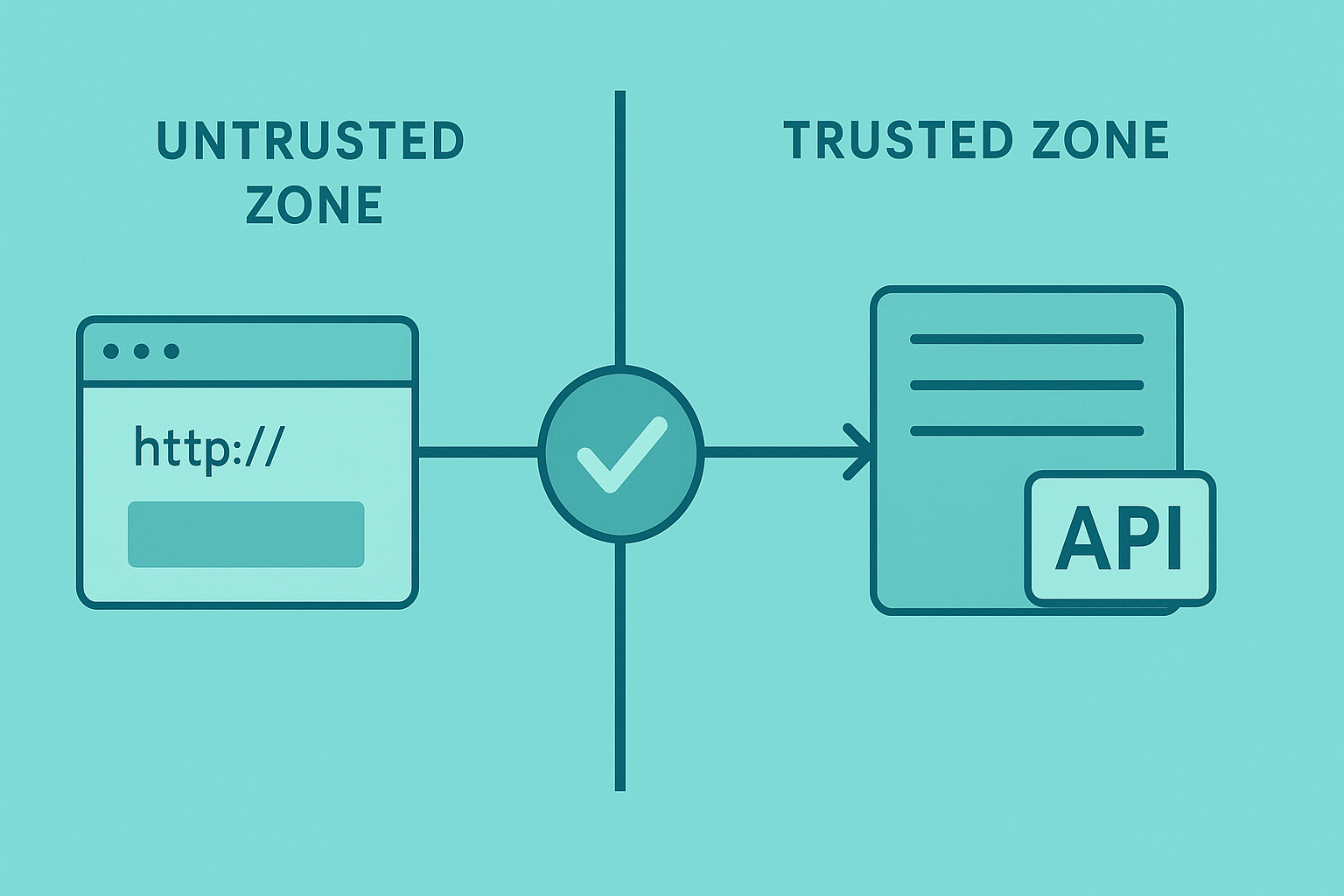

What Exactly Is a Trust Boundary?

A trust boundary is any point where data moves between zones of different trust levels. It’s not always a physical network firewall. Often, it’s a logical line within your own application, similar to how defining trust boundaries shapes where control begins and ends. Your backend API is trusted.

 The moment an HTTP request hits your server, that’s a major trust boundary. But there are smaller, internal boundaries too. Data moving from a public-facing microservice to an internal admin service crosses a boundary. Even data passing from a less-trusted third-party library into your main codebase should be scrutinized.

The key is recognizing that trust is not absolute. It’s contextual. Data validated for one purpose might be dangerous for another. A username might be safe to display on a webpage but could be malicious if used in a database query without proper escaping.

This is why validation at the boundary is so critical. You are essentially transforming untrusted, potentially dangerous input into trusted, safe data that your application can use confidently. You’re certifying its quality and intent before it goes any further.

Building Your First Line of Defense: A Centralized Architecture

Scattering validation logic across every controller or function is a recipe for inconsistency and bugs. One developer might check an email format correctly, another might forget. A centralized validation architecture solves this. You create a dedicated layer, a set of routines or a service, that all incoming data must pass through.

This becomes the single source of truth for what constitutes valid data in your system. We find that using a well-defined set of secure coding practices within this layer makes maintenance far simpler, especially when the validation process reflects how your data flow moves across different components.

When you need to update a validation rule, like adding a new country code to a phone number validator, you change it in one place. The change propagates everywhere. This approach also makes your validation logic more testable.

You can write comprehensive unit tests for your validation service, ensuring it catches every edge case. It enforces a standard. Every piece of data entering your trusted zone meets the same high bar. This consistency is what separates robust systems from fragile ones.

• Create a dedicated validation service or library.
• Enforce its use for all data entering from untrusted sources.
• Document the expected data formats and constraints clearly.

This central layer is where you implement your validation strategy. It should be simple to use for other developers, with clear function names and error messages. The goal is to make the right way, the secure way, also the easiest way.

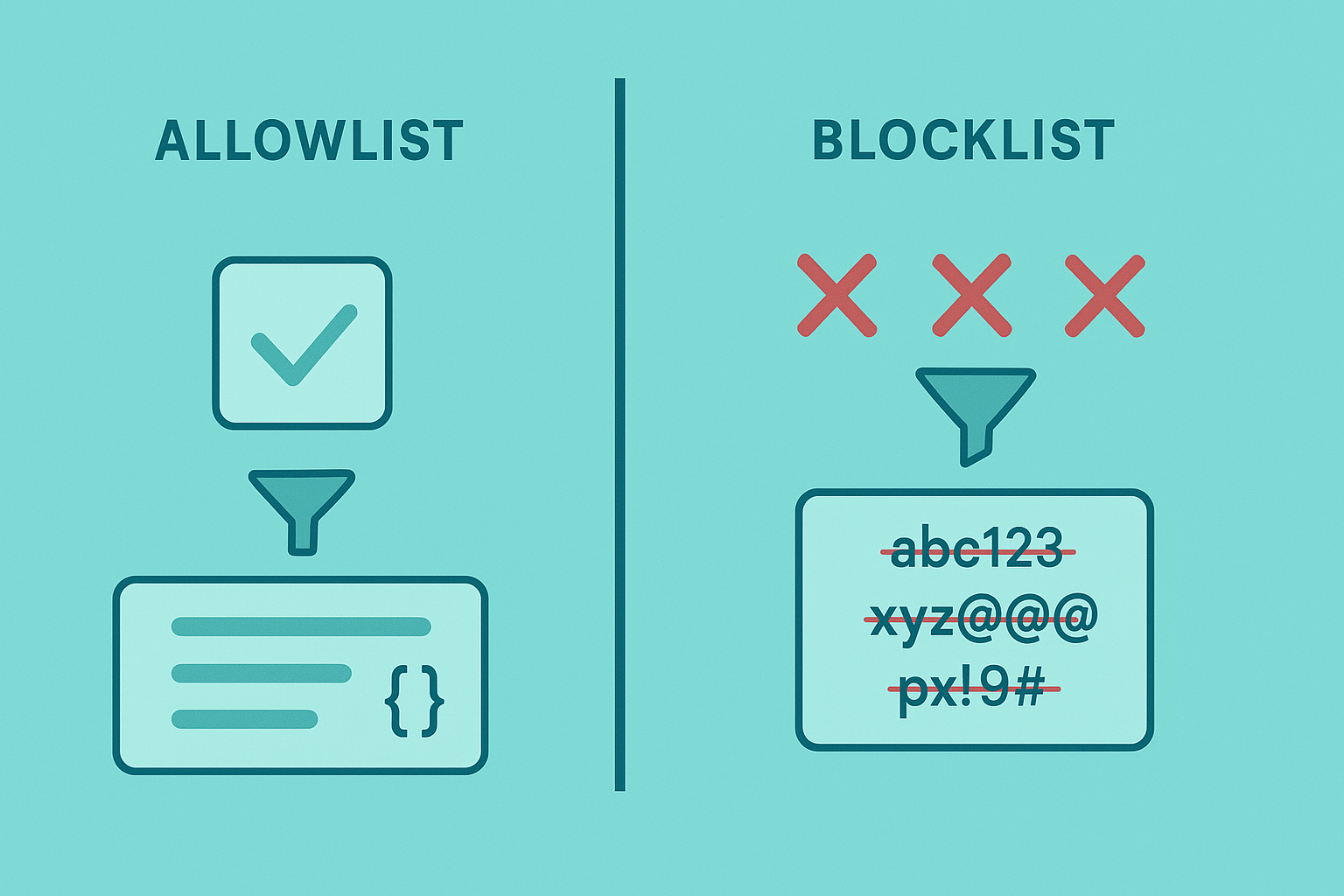

The Gold Standard: Allowlist Validation

There are two main approaches to validation: allowlists and blocklists. An allowlist, sometimes called a positive validation, defines what is allowed. A blocklist defines what is not allowed. In most scenarios, the allowlist approach is the safer and preferred option. It’s more secure. Why? Because it’s impossible to anticipate every possible bad input.

An attacker can always find a new creative way to form a malicious string that your blocklist doesn’t cover. Think of it like a bouncer at a club. An allowlist bouncer checks your ID to see if you’re on the guest list. A blocklist bouncer has a list of known troublemakers to turn away. Who is more likely to let an unwanted person slip through?

For example, validating a US zip code. An allowlist approach uses a regular expression to confirm the input matches exactly five digits, or five digits followed by a hyphen and four more digits. That’s it. Anything else is rejected.

A blocklist approach would try to identify and remove non-digit characters, which is more complex and error-prone. The allowlist is simpler, clearer, and far more robust. It constrains the input to a known-safe subset of possibilities, drastically reducing the attack surface.

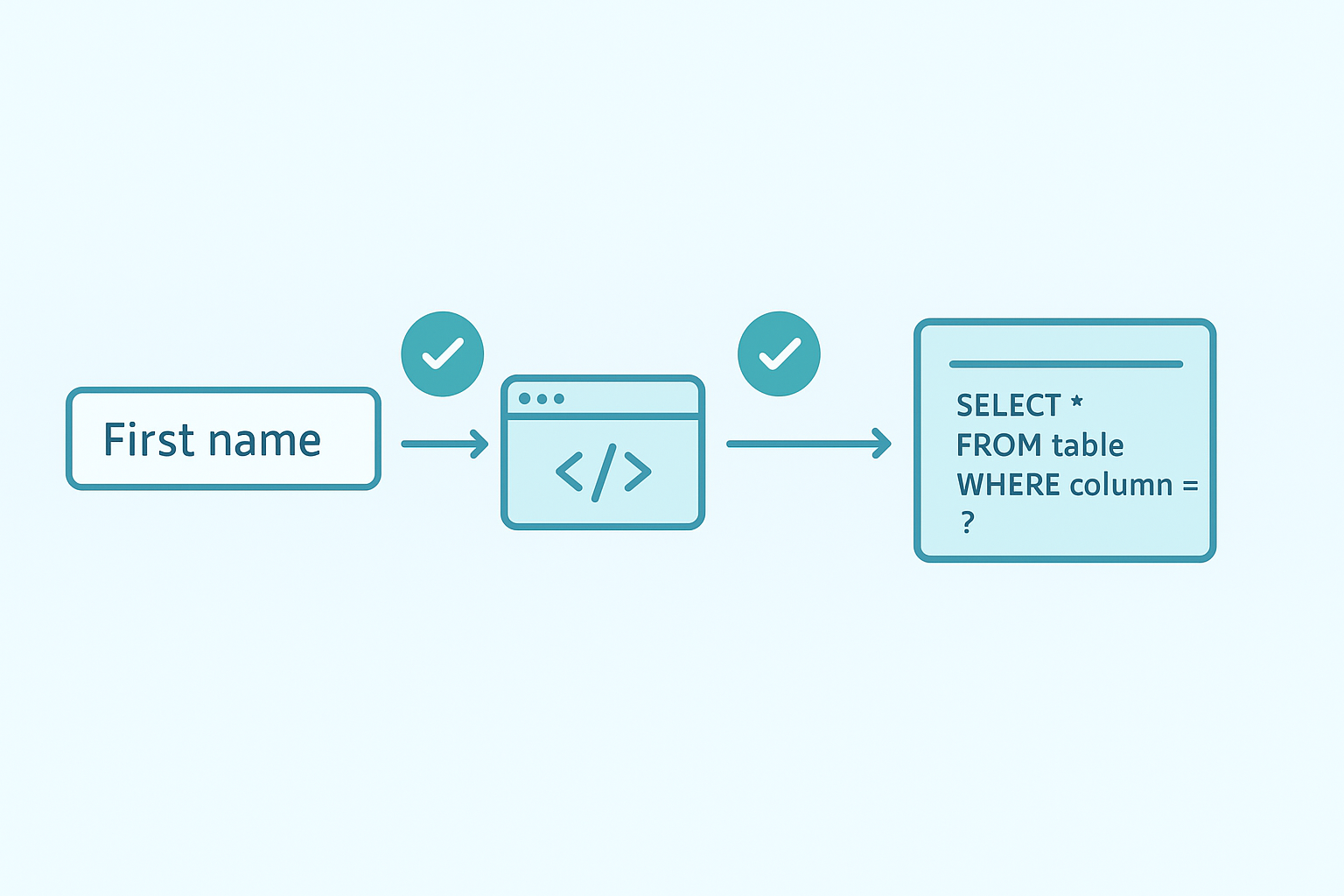

Context is King: Tailoring Your Validation

Data validation isn’t one-size-fits-all. The checks you perform must be appropriate for how the data will be used. This is context-specific validation. A string intended to be displayed as a first name on a webpage requires different validation than that same string if it’s going to be used in a SQL query.

For the webpage, you might sanitize it to remove any HTML tags to prevent Cross-Site Scripting (XSS). For the SQL query, you would use parameterized queries, a form of validation that separates data from code, to prevent SQL injection.

You don’t just validate data once at the boundary and forget about it. At the point of use, you apply context-specific output encoding, even after initial validation. This concept, often called “contextual output encoding,” is a critical part of the defense-in-depth strategy.

It ensures that even if a piece of data somehow bypasses the initial boundary check, it is still neutralized before it can cause harm in its final destination. This layered approach is what makes a system truly resilient.

Essential Techniques for Your Toolkit

Credits: SecureTechIn

Beyond the high-level strategy, several specific techniques are vital. Range and boundary checking is fundamental for numerical data. Is this user age between 0 and 120? Is this order quantity less than the available stock? These simple checks prevent logical errors and potential exploits like integer overflows.

Cross-field validation ensures consistency between related inputs. If a form has a “country” field and a “zip code” field, your validation should check that the zip code format matches the selected country.

When data moves across a network, the trust boundary includes the entire data-in-transit layer. Using HTTPS with modern TLS (1.2 or higher) is essential for protecting data as it crosses trust boundaries. It ensures the data hasn’t been tampered with or eavesdropped on during transit.

Finally, proper error handling is part of validation. When invalid data is detected, the system should reject it gracefully, logging the attempt and returning a clear, non-revealing error message to the user without exposing internal system details.

• Range Checking: Validate numbers and dates against min/max values.
• Cross-Field Validation: Ensure logical links between data points (e.g., state and zip code).
• Secure Transmission: Enforce HTTPS/TLS for data in motion.

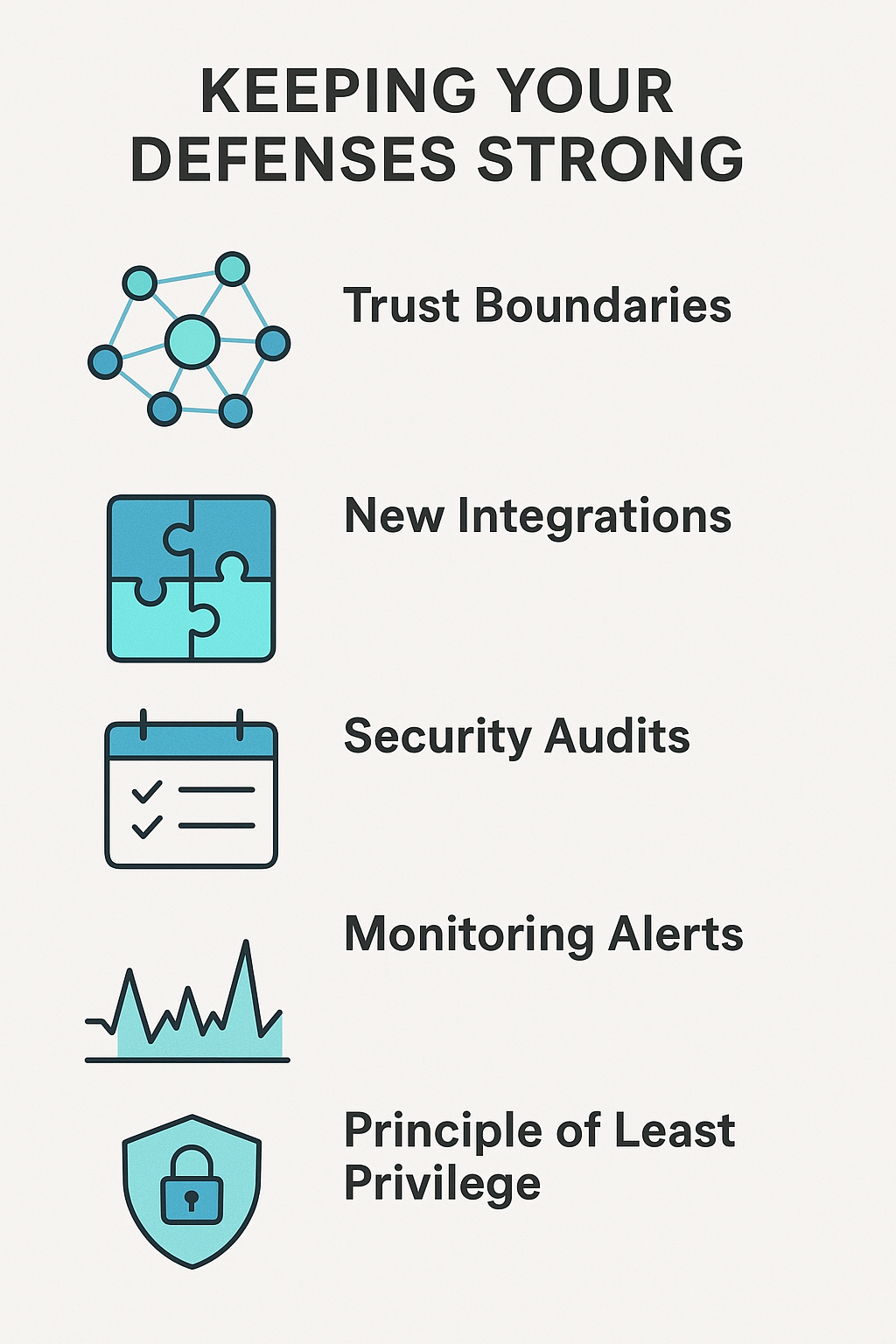

Keeping Your Defenses Strong

Implementing validation is not a one-time event. Systems evolve, new features are added, and threats change. You need a process for keeping your trust boundaries secure, much like how good network segmentation reinforces separation between high-risk and low-risk zones. This starts with regularly identifying and mapping all boundaries.

Any new integration with an external service creates a new boundary that must be secured. Conducting periodic security audits and penetration tests can help find validation gaps you might have missed.

Monitoring is also crucial. Logging validation failures can alert you to active probing or attack attempts. A sudden spike in failed validations for a particular endpoint might indicate an automated attack is underway.

This gives you an early warning to strengthen your defenses. The principle of least privilege should be applied everywhere. Even validated data should only have access to the resources it absolutely needs. This limits the potential damage if a vulnerability is ever found.

FAQ

What’s the easiest way to understand trust boundaries when dealing with untrusted data?

Think of trust boundaries as checkpoints where untrusted data becomes trusted data. You apply input validation, data validation, and data sanitization to keep data quality high. These boundaries help stop trust boundary violation issues early. A simple map of your data flow control can show where you need validation routines and better validation techniques.

How can I keep data integrity strong when collecting information from different sources?

Start with data entry validation and data source validation. Use constraint validation, cross-field validation, and range checking to keep data consistent. Add validation policies that match your business rules enforcement. A steady validation strategy with validation guidelines and validation enforcement lowers validation risks and improves overall data security.

What’s the difference between allowlist validation and blocklist validation in real projects?

Allowlist validation accepts only known-good input, while blocklist validation tries to block bad patterns. Allowlist options usually give better data authenticity and fewer validation vulnerabilities. Blocklist choices can miss tainted input. Many teams mix both inside a centralized validation layer that also uses validation filters and validation functions.

How do I avoid a trust boundary violation when handling secure data transfer?

Use validation mechanisms before the secure data transfer starts. Apply validation scripts, validation automation, and boundary checking to every validation checkpoint. Good error handling, validation tools, and validation frameworks help spot validation error detection problems early. This reduces validation risks and supports data breach prevention without adding much complexity.

How do I build a long-term validation architecture that stays reliable?

Plan for the whole data validation lifecycle. Set clear validation workflows, validation classes, and validation maintenance steps. Mix automated validation with manual validation to improve validation coverage. Use validation metrics to track validation accuracy, validation robustness, and validation effectiveness. This keeps validation scalability strong and improves validation traceability over time.

Conclusion

Validating data trust boundaries is ultimately about control, taking deliberate ownership of the data that enters your system. It shifts you from reacting to problems after they surface to preventing them from ever becoming issues. By strengthening these boundaries, you create a foundation of data integrity that makes every layer of your application more reliable and secure.

It’s not the flashiest part of software development, but it’s one of the most impactful. Start small: map one data flow in your application, identify its trust boundary, and reinforce it. That single action moves you toward a more resilient, breach-resistant future.

If you want hands-on practice applying this mindset in real code, the Secure Coding Practices Bootcamp offers practical training, no jargon, just real-world skills. Learn essential topics like OWASP Top 10, input validation, secure authentication, encryption, and safe dependency use through expert-led sessions, labs, replays, and certification.
